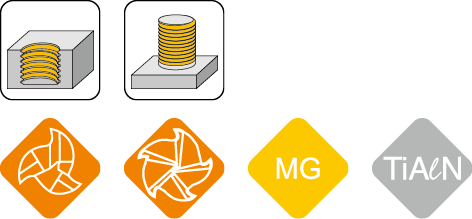

CTSIU CARBIDE THREAD MILLS- Straight Flute- External / Internal- American UN
PRODUCT FEATURES：
- Cutting Materials：Carbon steel, Chrome steel, Alloy steel, Hardened steel, Stainless steel, Cast iron, Aluminum alloy, Copper alloy, Titanium alloy, Nickel-based alloy.
- Equipment：CNC Vertical Machining Center, Multi-Tasking Machine.
- Applications：Aerospace, Machinery, Mold ＆ Die, Automotive, Motorcycle, Mobile Phones, Display Panels, Electronics.
Spec
| Inquiry | Model | Thread(UN) | Tpi | Dia.(d) | CL(L1) | OAL(L) | Shank(D) | Flutes(F) | Coating |
|---|---|---|---|---|---|---|---|---|---|
| | CTSIU303004-360A | No.8 | 36 | 3 | 6.3 | 50 | 4 | 3 | TIALN |
| | CTSIU303004-320A | No.8 | 32 | 3 | 6.3 | 50 | 4 | 3 | TIALN |
| | CTSIU305906-320A | 5/16" | 32 | 5.9 | 14.3 | 60 | 6 | 3 | TIALN |
| | CTSIU303604-280A | No.12 | 28 | 3.6 | 8.2 | 50 | 4 | 3 | TIALN |
| | CTSIU307908-280A | 7/16" | 28 | 7.9 | 19.9 | 60 | 8 | 3 | TIALN |
| | CTSIU304006-240A | No.12 | 24 | 4 | 8.5 | 60 | 6 | 3 | TIALN |
| | CTSIU304006-200A | 1/4" | 20 | 4 | 10.2 | 60 | 6 | 3 | TIALN |
| | CTSIU509910-200A | 9/16" | 20 | 9.9 | 22.9 | 75 | 10 | 5 | TIALN |
| | CTSIU305006-180A | 5/16" | 18 | 5 | 12.7 | 60 | 6 | 3 | TIALN |
| | CTSIU509910-180A | 9/16" | 18 | 9.9 | 24 | 75 | 10 | 5 | TIALN |
| | CTSIU305906-160A | 3/8" | 16 | 5.9 | 14.3 | 60 | 6 | 3 | TIALN |
| | CTSIU511912-160A | 3/4" | 16 | 11.9 | 28.6 | 100 | 12 | 5 | TIALN |
| | CTSIU307908-140A | 7/16" | 14 | 7.9 | 18.1 | 60 | 8 | 3 | TIALN |
| | CTSIU307908-130A | 1/2" | 13 | 7.9 | 19.5 | 60 | 8 | 3 | TIALN |
| | CTSIU509910-120A | 9/16" | 12 | 9.9 | 23.3 | 75 | 10 | 5 | TIALN |
| | CTSIU511912-120A | 1" | 12 | 11.9 | 29.6 | 100 | 12 | 5 | TIALN |
| | CTSIU509910-110A | 5/8" | 11 | 9.9 | 23.1 | 75 | 10 | 5 | TIALN |
| | CTSIU511912-100A | 3/4" | 10 | 11.9 | 27.9 | 100 | 12 | 5 | TIALN |
| | CTSIU515916-090A | 7/8" | 9 | 15.9 | 33.3 | 100 | 16 | 5 | TIALN |
| | CTSIU515916-080A | 1" | 8 | 15.9 | 38.1 | 100 | 16 | 5 | TIALN |
| | CTSIU515916-070A | 1 1/8" | 7 | 15.9 | 36.3 | 100 | 16 | 5 | TIALN |
| | CTSIU519920-060A | 1 3/8" | 6 | 19.9 | 38.1 | 100 | 20 | 5 | TIALN |
| | CTSIU519920-050A | 1 3/4" | 5 | 19.9 | 40.6 | 100 | 20 | 5 | TIALN |
| | CTSIU519920-045A | 2" | 4.5 | 19.9 | 39.5 | 100 | 20 | 5 | TIALN |
