NECD NANO CARBIDE CORNER RADIUS END MILLS- Short Flute- 4F

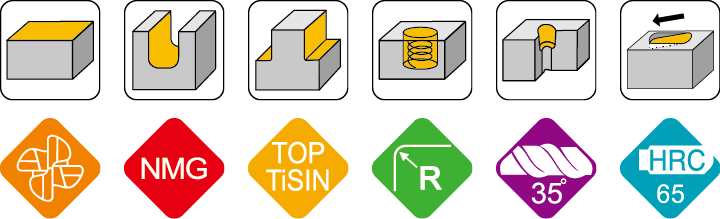

PRODUCT FEATURES：
- Cutting Tool Design I：Manufactured from premium wear-resistant tungsten carbide rods, ensuring high strength and excellent wear resistance, ideal for machining hardened steel.
- Cutting Tool Design II：The cutting edge features a specialized geometry that enhances tool rigidity, reduces chipping and extends tool life.
- Cutting Materials：Chrome steel, Alloy steel, Hardened steel(≦63°HRC), Cast iron.
- Equipment：CNC Vertical Machining Center, Multi-Tasking Machine.
- Applications：Aerospace, Machinery, Mold ＆ Die, Automotive, Motorcycle.
Spec
| Inquiry | Model | Dia.(d) | Radius(R) | CL(L1) | EFF-L(L2) | OAL(L) | Shank(D) | Flutes(F) | Coating |
|---|---|---|---|---|---|---|---|---|---|
| | NECDM4010002A | 1 | 0.2R | 1 | 2.5 | 50 | 4 | 4 | TOP TISIN |
| | NECDM40150015A | 1.5 | 0.15R | 1.5 | 3.5 | 50 | 4 | 4 | TOP TISIN |
| | NECDM4015003A | 1.5 | 0.3R | 1.5 | 3.5 | 50 | 4 | 4 | TOP TISIN |
| | NECDM40200025A | 2 | 0.25R | 2 | 6.5 | 50 | 4 | 4 | TOP TISIN |
| | NECDM40250025A | 2.5 | 0.25R | 2.5 | 7.5 | 50 | 4 | 4 | TOP TISIN |
| | NECDM4025005A | 2.5 | 0.5R | 2.5 | 7.5 | 50 | 4 | 4 | TOP TISIN |
| | NECDM4040002A | 4 | 0.2R | 4 | 10 | 50 | 4 | 4 | TOP TISIN |
| | NECD40300025A | 3 | 0.25R | 3 | 7.5 | 50 | 6 | 4 | TOP TISIN |
| | NECD4030005A | 3 | 0.5R | 3 | 7.5 | 50 | 6 | 4 | TOP TISIN |
| | NECD40400025A | 4 | 0.25R | 4 | 10 | 50 | 6 | 4 | TOP TISIN |
| | NECD4040005A | 4 | 0.5R | 4 | 10 | 50 | 6 | 4 | TOP TISIN |
| | NECD40500025A | 5 | 0.25R | 5 | 12.5 | 50 | 6 | 4 | TOP TISIN |
| | NECD4050005A | 5 | 0.5R | 5 | 12.5 | 50 | 6 | 4 | TOP TISIN |
| | NECD4060005A | 6 | 0.5R | 6 | 15 | 50 | 6 | 4 | TOP TISIN |
| | NECD4060010A | 6 | 1R | 6 | 15 | 50 | 6 | 4 | TOP TISIN |
| | NECD4080005A | 8 | 0.5R | 8 | 20 | 60 | 8 | 4 | TOP TISIN |
| | NECD4080010A | 8 | 1R | 8 | 20 | 60 | 8 | 4 | TOP TISIN |
| | NECD4080015A | 8 | 1.5R | 8 | 20 | 60 | 8 | 4 | TOP TISIN |
| | NECD4100005A | 10 | 0.5R | 10 | 25 | 75 | 10 | 4 | TOP TISIN |
| | NECD4100010A | 10 | 1R | 10 | 25 | 75 | 10 | 4 | TOP TISIN |
| | NECD4100015A | 10 | 1.5R | 10 | 25 | 75 | 10 | 4 | TOP TISIN |
| | NECD4100020A | 10 | 2R | 10 | 25 | 75 | 10 | 4 | TOP TISIN |
| | NECD4120005A | 12 | 0.5R | 12 | 30 | 75 | 12 | 4 | TOP TISIN |
| | NECD4120010A | 12 | 1R | 12 | 30 | 75 | 12 | 4 | TOP TISIN |
| | NECD4120015A | 12 | 1.5R | 12 | 30 | 75 | 12 | 4 | TOP TISIN |
| | NECD4120020A | 12 | 2R | 12 | 30 | 75 | 12 | 4 | TOP TISIN |
