CES CARBIDE SQUARE END MILLS- Standard- 4F

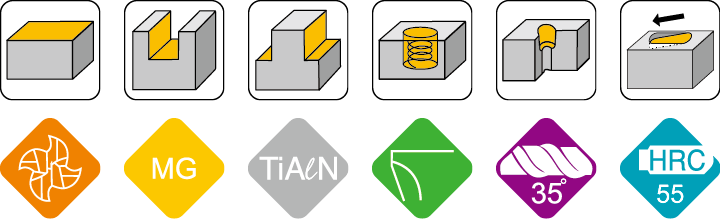

PRODUCT FEATURES：
- Cutting Materials：Carbon steel, Chrome steel, Alloy steel, Stainless steel, Cast iron.
- Equipment：CNC Vertical Machining Center, Multi-Tasking Machine.
- Applications：Aerospace, Machinery, Mold ＆ Die, Automotive, Motorcycle.
Spec
| Inquiry | Model | Dia.(d) | CL(L1) | OAL(L) | Shank(D) | Flutes(F) | Coating |
|---|---|---|---|---|---|---|---|
| | CESS40100A | 1 | 3 | 50 | 3 | 4 | TIALN |
| | CESS40150A | 1.5 | 4 | 50 | 3 | 4 | TIALN |
| | CESS40200A | 2 | 5 | 50 | 3 | 4 | TIALN |
| | CESS40250A | 2.5 | 6 | 50 | 3 | 4 | TIALN |
| | CESS40300A | 3 | 8 | 50 | 3 | 4 | TIALN |
| | CESM40100A | 1 | 3 | 50 | 4 | 4 | TIALN |
| | CESM40150A | 1.5 | 4 | 50 | 4 | 4 | TIALN |
| | CESM40200A | 2 | 5 | 50 | 4 | 4 | TIALN |
| | CESM40250A | 2.5 | 6 | 50 | 4 | 4 | TIALN |
| | CESM40300A | 3 | 8 | 50 | 4 | 4 | TIALN |
| | CESM40350A | 3.5 | 9 | 50 | 4 | 4 | TIALN |
| | CESM40400A | 4 | 10 | 50 | 4 | 4 | TIALN |
| | CES40300A | 3 | 8 | 50 | 6 | 4 | TIALN |
| | CES40300090CA | 3 | 9 | 50 | 6 | 4 | TIALN |
| | CES40350A | 3.5 | 9 | 50 | 6 | 4 | TIALN |
| | CES40400A | 4 | 10 | 50 | 6 | 4 | TIALN |
| | CES40400120CA | 4 | 12 | 50 | 6 | 4 | TIALN |
| | CES40450A | 4.5 | 11 | 50 | 6 | 4 | TIALN |
| | CES40500A | 5 | 13 | 50 | 6 | 4 | TIALN |
| | CES40550A | 5.5 | 14 | 50 | 6 | 4 | TIALN |
| | CES40600A | 6 | 15 | 50 | 6 | 4 | TIALN |
| | CES40600180CA | 6 | 18 | 50 | 6 | 4 | TIALN |
| | CES40650A | 6.5 | 16 | 60 | 8 | 4 | TIALN |
| | CES40700A | 7 | 18 | 60 | 8 | 4 | TIALN |
| | CES40750A | 7.5 | 18 | 60 | 8 | 4 | TIALN |
| | CES40800A | 8 | 20 | 60 | 8 | 4 | TIALN |
| | CES40800240CA | 8 | 24 | 60 | 8 | 4 | TIALN |
| | CES40800075LA | 8 | 20 | 75 | 8 | 4 | TIALN |
| | CES40850A | 8.5 | 20 | 75 | 10 | 4 | TIALN |
| | CES40900A | 9 | 22 | 75 | 10 | 4 | TIALN |
| | CES40950A | 9.5 | 22 | 75 | 10 | 4 | TIALN |
| | CES41000A | 10 | 25 | 75 | 10 | 4 | TIALN |
| | CES41000300CA | 10 | 30 | 75 | 10 | 4 | TIALN |
| | CES41050A | 10.5 | 25 | 75 | 12 | 4 | TIALN |
| | CES41100A | 11 | 25 | 75 | 12 | 4 | TIALN |
| | CES41150A | 11.5 | 25 | 75 | 12 | 4 | TIALN |
| | CES41200A | 12 | 30 | 75 | 12 | 4 | TIALN |
| | CES41200360CA | 12 | 36 | 75 | 12 | 4 | TIALN |
| | CES4130014A | 13 | 30 | 75 | 14 | 4 | TIALN |
| | CES4140014A | 14 | 30 | 75 | 14 | 4 | TIALN |
| | CES41500A | 15 | 35 | 100 | 16 | 4 | TIALN |
| | CES41600A | 16 | 35 | 100 | 16 | 4 | TIALN |
| | CES41600450CA | 16 | 45 | 100 | 16 | 4 | TIALN |
| | CES4180018A | 18 | 40 | 100 | 18 | 4 | TIALN |
| | CES41800A | 18 | 40 | 100 | 20 | 4 | TIALN |
| | CES42000A | 20 | 45 | 100 | 20 | 4 | TIALN |
| | CES42500A | 25 | 45 | 100 | 25 | 4 | TIALN |
