MEN ULTRA CARBIDE SQUARE END MILLS- Long Neck- 2F

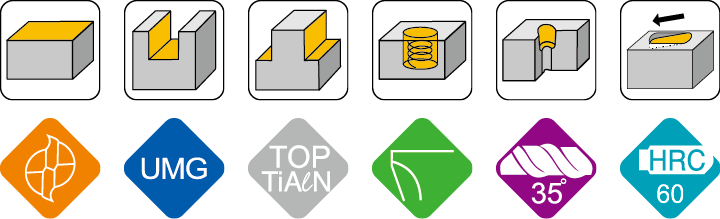

PRODUCT FEATURES：
- Cutting Materials：Carbon steel, Chrome steel, Alloy steel, Hardened steel, Stainless steel, Cast iron.
- Equipment：CNC Vertical Machining Center, Multi-Tasking Machine.
- Applications：Aerospace, Machinery, Mold ＆ Die, Automotive, Motorcycle.
Spec
| Inquiry | Model | Dia.(d) | CL(L1) | EFF-L(L2) | OAL(L) | Shank(D) | Flutes(F) | Coating |
|---|---|---|---|---|---|---|---|---|
| | MEN20100040A | 1 | 1.5 | 4 | 50 | 4 | 2 | TOP TIALN |
| | MEN20100080A | 1 | 1.5 | 8 | 50 | 4 | 2 | TOP TIALN |
| | MEN20120060A | 1.2 | 1.8 | 6 | 50 | 4 | 2 | TOP TIALN |
| | MEN20120100A | 1.2 | 1.8 | 10 | 50 | 4 | 2 | TOP TIALN |
| | MEN20150080A | 1.5 | 2.3 | 8 | 50 | 4 | 2 | TOP TIALN |
| | MEN20150120A | 1.5 | 2.3 | 12 | 50 | 4 | 2 | TOP TIALN |
| | MEN20180100A | 1.8 | 2.7 | 10 | 50 | 4 | 2 | TOP TIALN |
| | MEN20180160A | 1.8 | 2.7 | 16 | 50 | 4 | 2 | TOP TIALN |
| | MEN20200100A | 2 | 3 | 10 | 50 | 4 | 2 | TOP TIALN |
| | MEN20200160A | 2 | 3 | 16 | 50 | 4 | 2 | TOP TIALN |
| | MEN20200200A | 2 | 3 | 20 | 60 | 4 | 2 | TOP TIALN |
| | MEN20250120A | 2.5 | 3.5 | 12 | 50 | 4 | 2 | TOP TIALN |
| | MEN20250200A | 2.5 | 3.5 | 20 | 60 | 4 | 2 | TOP TIALN |
| | MEN20300120A | 3 | 4.5 | 12 | 50 | 6 | 2 | TOP TIALN |
| | MEN20300200A | 3 | 4.5 | 20 | 60 | 6 | 2 | TOP TIALN |
| | MEN20400200A | 4 | 6 | 20 | 60 | 6 | 2 | TOP TIALN |
| | MEN20400300A | 4 | 6 | 30 | 60 | 6 | 2 | TOP TIALN |
| | MEN20100040038LA | 1 | 1.5 | 4 | 38 | 4 | 2 | TOP TIALN |
| | MEN20100080038LA | 1 | 1.5 | 8 | 38 | 4 | 2 | TOP TIALN |
| | MEN20120060038LA | 1.2 | 1.8 | 6 | 38 | 4 | 2 | TOP TIALN |
| | MEN20120100038LA | 1.2 | 1.8 | 10 | 38 | 4 | 2 | TOP TIALN |
| | MEN20150080038LA | 1.5 | 2.3 | 8 | 38 | 4 | 2 | TOP TIALN |
| | MEN20150120038LA | 1.5 | 2.3 | 12 | 38 | 4 | 2 | TOP TIALN |
| | MEN20180100038LA | 1.8 | 2.7 | 10 | 38 | 4 | 2 | TOP TIALN |
| | MEN20180160038LA | 1.8 | 2.7 | 16 | 38 | 4 | 2 | TOP TIALN |
| | MEN20200100038LA | 2 | 3 | 10 | 38 | 4 | 2 | TOP TIALN |
| | MEN20200160038LA | 2 | 3 | 16 | 38 | 4 | 2 | TOP TIALN |
| | MEN20200200050LA | 2 | 3 | 20 | 50 | 4 | 2 | TOP TIALN |
| | MEN20250120038LA | 2.5 | 3.5 | 12 | 38 | 4 | 2 | TOP TIALN |
| | MEN20250200050LA | 2.5 | 3.5 | 20 | 50 | 4 | 2 | TOP TIALN |
| | MEN20300120038LA | 3 | 4.5 | 12 | 38 | 6 | 2 | TOP TIALN |
| | MEN20300200050LA | 3 | 4.5 | 20 | 50 | 6 | 2 | TOP TIALN |
| | MEN20400200050LA | 4 | 6 | 20 | 50 | 6 | 2 | TOP TIALN |
| | MEN20400300050LA | 4 | 6 | 30 | 50 | 6 | 2 | TOP TIALN |
