CESG CARBIDE SQUARE END MILLS FOR GRAPHITE- Standard- 2F

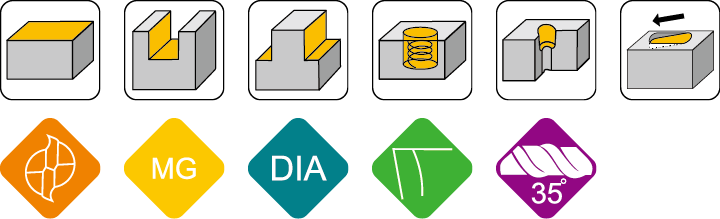

PRODUCT FEATURES：
- Cutting Materials：Graphite.
- Equipment：CNC Vertical Machining Center, Multi-Tasking Machine.
- Applications：Aerospace, Machinery, Mold ＆ Die, Automotive, Motorcycle.
Spec
| Inquiry | Model | Dia.(d) | CL(L1) | OAL(L) | Shank(D) | Flutes(F) | Coating |
|---|---|---|---|---|---|---|---|
| | CESGM20100A | 1 | 3 | 50 | 4 | 2 | DIA |
| | CESGM20200A | 2 | 6 | 50 | 4 | 2 | DIA |
| | CESGM20300A | 3 | 8 | 50 | 4 | 2 | DIA |
| | CESGM20400A | 4 | 10 | 50 | 4 | 2 | DIA |
| | CESG20300A | 3 | 8 | 50 | 6 | 2 | DIA |
| | CESG20400A | 4 | 10 | 50 | 6 | 2 | DIA |
| | CESG20500A | 5 | 13 | 50 | 6 | 2 | DIA |
| | CESG20600A | 6 | 15 | 50 | 6 | 2 | DIA |
| | CESG20800A | 8 | 20 | 60 | 8 | 2 | DIA |
| | CESG21000A | 10 | 25 | 75 | 10 | 2 | DIA |
| | CESG21200A | 12 | 30 | 75 | 12 | 2 | DIA |
