CEX CARBIDE SQUARE END MILLS FOR ALUMINUM- High Helix- 3F

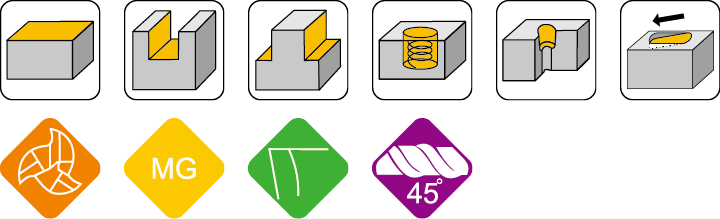

PRODUCT FEATURES：
- Cutting Materials：Aluminum alloy, Copper alloy.
- Equipment：CNC Vertical Machining Center, Multi-Tasking Machine.
- Applications：Aerospace, Machinery, Mold ＆ Die, Automotive, Motorcycle.
Spec
| Inquiry | Model | Dia.(d) | CL(L1) | OAL(L) | Shank(D) | Flutes(F) | Coating |
|---|---|---|---|---|---|---|---|
| | CEXS30300 | 3 | 9 | 50 | 3 | 3 | — |
| | CEXM30100 | 1 | 3 | 50 | 4 | 3 | — |
| | CEXM30150 | 1.5 | 4.5 | 50 | 4 | 3 | — |
| | CEXM30200 | 2 | 6 | 50 | 4 | 3 | — |
| | CEXM30300 | 3 | 9 | 50 | 4 | 3 | — |
| | CEXM30400 | 4 | 12 | 50 | 4 | 3 | — |
| | CEX30100 | 1 | 3 | 50 | 6 | 3 | — |
| | CEX30150 | 1.5 | 4.5 | 50 | 6 | 3 | — |
| | CEX30200 | 2 | 6 | 50 | 6 | 3 | — |
| | CEX30300 | 3 | 9 | 50 | 6 | 3 | — |
| | CEX30400 | 4 | 12 | 50 | 6 | 3 | — |
| | CEX30500 | 5 | 15 | 50 | 6 | 3 | — |
| | CEX30600 | 6 | 18 | 50 | 6 | 3 | — |
| | CEX30800 | 8 | 20 | 60 | 8 | 3 | — |
| | CEX31000 | 10 | 30 | 75 | 10 | 3 | — |
| | CEX31200 | 12 | 30 | 75 | 12 | 3 | — |
| | CEX31600 | 16 | 40 | 100 | 16 | 3 | — |
| | CEX32000 | 20 | 45 | 100 | 20 | 3 | — |
