CESC CARBIDE SQUARE END MILLS FOR COPPER ＆ ALUMINUM- 2F

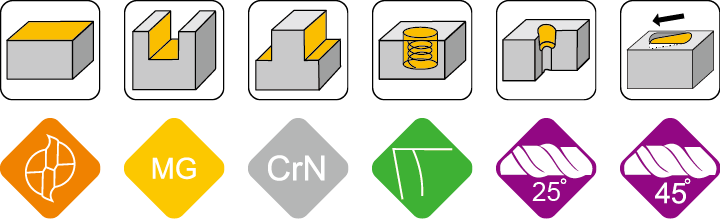

PRODUCT FEATURES：
- Cutting Materials：Aluminum alloy, Copper alloy.
- Equipment：CNC Vertical Machining Center, Multi-Tasking Machine.
- Applications：Aerospace, Machinery, Mold ＆ Die, Automotive, Motorcycle.
Spec
| Inquiry | Model | Dia.(d) | CL(L1) | OAL(L) | Shank(D) | Flutes(F) | Coating |
|---|---|---|---|---|---|---|---|
| | CESCM20050-25A | 0.5 | 1 | 50 | 4 | 2 | CRN |
| | CESCM20100-25A | 1 | 2 | 50 | 4 | 2 | CRN |
| | CESCM20150-25A | 1.5 | 3 | 50 | 4 | 2 | CRN |
| | CESCM20200-25A | 2 | 4 | 50 | 4 | 2 | CRN |
| | CESCM20250-25A | 2.5 | 5 | 50 | 4 | 2 | CRN |
| | CESC20300-25A | 3 | 6 | 50 | 6 | 2 | CRN |
| | CESC20400-25A | 4 | 8 | 50 | 6 | 2 | CRN |
| | CESC20500-25A | 5 | 10 | 60 | 6 | 2 | CRN |
| | CESC20600-25A | 6 | 12 | 60 | 6 | 2 | — |
| | CESC20800-25A | 8 | 16 | 60 | 8 | 2 | CRN |
| | CESC21000-25A | 10 | 20 | 75 | 10 | 2 | CRN |
| | CESC21200-25A | 12 | 24 | 75 | 12 | 2 | CRN |
| | CESCM20050-45A | 0.5 | 1 | 50 | 4 | 2 | CRN |
| | CESCM20100-45A | 1 | 2 | 50 | 4 | 2 | CRN |
| | CESCM20150-45A | 1.5 | 3 | 50 | 4 | 2 | CRN |
| | CESCM20200-45A | 2 | 4 | 50 | 4 | 2 | CRN |
| | CESCM20250-45A | 2.5 | 5 | 50 | 4 | 2 | CRN |
| | CESC20300-45A | 3 | 6 | 50 | 6 | 2 | CRN |
| | CESC20400-45A | 4 | 8 | 50 | 6 | 2 | CRN |
| | CESC20500-45A | 5 | 10 | 60 | 6 | 2 | CRN |
| | CESC20600-45A | 6 | 12 | 60 | 6 | 2 | CRN |
| | CESC20800-45A | 8 | 16 | 60 | 8 | 2 | CRN |
| | CESC21000-45A | 10 | 20 | 75 | 10 | 2 | CRN |
| | CESC21200-45A | 12 | 24 | 75 | 12 | 2 | CRN |
| | CESCM20050-25 | 0.5 | 1 | 50 | 4 | 2 | — |
| | CESCM20100-25 | 1 | 2 | 50 | 4 | 2 | — |
| | CESCM20150-25 | 1.5 | 3 | 50 | 4 | 2 | — |
| | CESCM20200-25 | 2 | 4 | 50 | 4 | 2 | — |
| | CESCM20250-25 | 2.5 | 5 | 50 | 4 | 2 | — |
| | CESC20300-25 | 3 | 6 | 50 | 6 | 2 | — |
| | CESC20400-25 | 4 | 8 | 50 | 6 | 2 | — |
| | CESC20500-25 | 5 | 10 | 60 | 6 | 2 | — |
| | CESC20600-25 | 6 | 12 | 60 | 6 | 2 | — |
| | CESC20800-25 | 8 | 16 | 60 | 8 | 2 | — |
| | CESC21000-25 | 10 | 20 | 75 | 10 | 2 | — |
| | CESC21200-25 | 12 | 24 | 75 | 12 | 2 | — |
| | CESCM20050-45 | 0.5 | 1 | 50 | 4 | 2 | — |
| | CESCM20100-45 | 1 | 2 | 50 | 4 | 2 | — |
| | CESCM20150-45 | 1.5 | 3 | 50 | 4 | 2 | — |
| | CESCM20200-45 | 2 | 4 | 50 | 4 | 2 | — |
| | CESCM20250-45 | 2.5 | 5 | 50 | 4 | 2 | — |
| | CESC20300-45 | 3 | 6 | 50 | 6 | 2 | — |
| | CESC20400-45 | 4 | 8 | 50 | 6 | 2 | — |
| | CESC20500-45 | 5 | 10 | 60 | 6 | 2 | — |
| | CESC20600-45 | 6 | 12 | 60 | 6 | 2 | — |
| | CESC20800-45 | 8 | 16 | 60 | 8 | 2 | — |
| | CESC21000-45 | 10 | 20 | 75 | 10 | 2 | — |
| | CESC21200-45 | 12 | 24 | 75 | 12 | 2 | — |
